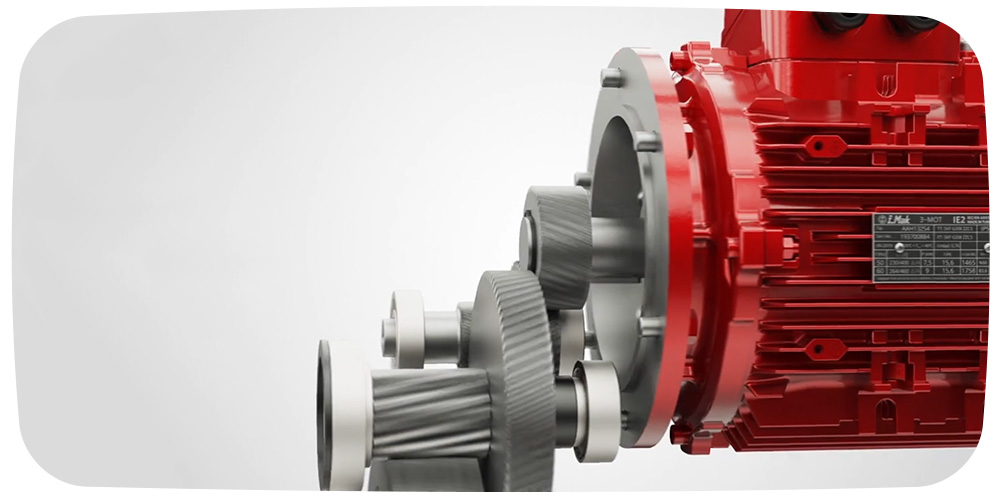

Parallel shaft geared motors are characterised by their compact design and easy assembly. This makes them extremely suitable for screw conveyors, conveyor and elevator belts, crank arm mechanisms, roller conveyors, extruders and hoisting/elevating mechanisms, among others.
Special version of this parallel shaft geared motor is the one with CEMA output. The special stainless steel output shaft and flange, meet the CEMA Standard for Screw Conveyors for easy mounting directly on the screw conveyor. The shaft is available with 2 or 3 holes and the output has a reinforced bearing and double viton seals.
The units are characterised by high quality internal gearing and alignment, which makes them run very quietly and vibration is negligible. The monoblocks are made of cast iron and have a sleek finish in any desired colour. Depending on the application and required ratio or size, we offer two different brands of parallel shaft geared motors, from our Turkish partner I.Mak and our Spanish partner Cidepa-Sincron.
Characteristics of parallel shaft geared motors
- Output torque of 130 Nm to 18,000 Nm
- Standard output shaft of 25 mm to 120 mm in diameter
- Two-stage and three-stage units in the same housing, options for multiple stages
- Directly coupled motor, by IEC connection or by IEC connection with flexible coupling
- Numerous options possible such as special input and output shaft, reinforced bearings, ATEX certification, CEMA output and so on.
- Electric motors in many variants and many options such as brakes, PTCs, encoder, rain cover and so on.
